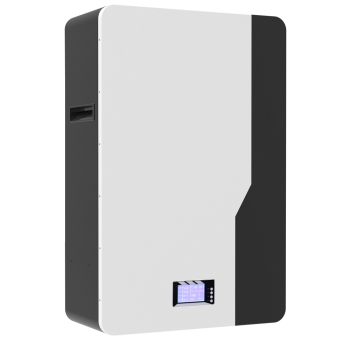

Wall-Mounted Energy Storage Battery

group name: Wall-Mounted Energy Storage Battery

Min Order: 1 piece

brand name: A-sun & Xianke

model: 51.2V M16S100-200BL-V

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Mon, 20 Apr 2026 16:08:28 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

PCHNE has flexible and automated production lines for lithium-ion battery pack, which have a complete and full processes
from front-end processing for material, test for semi-finished product and aging test for finished product and other processes.
PCHNE has a factory of 6,000+m² in Guangdong province, and an industrial park of 40,000+m² in Anhui province. It has the
ability to produce residential energy storage batteries, commercial and industrial energy storage batteries and lithium-ion batteries for electric forklifts, golf cart, AGV and various special specifications and models.

Detailed

Standby power01

01 BATTERY FEATURES

Original Grade A lithium iron phosphate battery cell has high safety and reliability

The charging and discharging efficiency is high, and the number of cycles is more than 6000 times Compatible with most inverters on the market

Supporting RS485 and CAN communication

Modular design, can be expanded at any time to increase the energy of the system

Supporting up to 15 batteries in parallel

ON/OFF switch control output

The LCD display monitors the operating status in real time

Product Description

Features

Product Model	M16S100BL-V	M16S200BL-V
Cells In Series	16S	16S
Rated Energy (KWh)	5.12	10.24
Rated Voltage (V)	51.2	51.2
Charging Voltage (V)	58.4	58.4
Discharge Cut-off Voltage (V)	42	42
Standard Charge Current (A)	20	40
Maximum Charging Current (A)	100	100
Maximum Discharge Current (A)	100	100

Cycle Life	≥ 6000 times @ 80% DOD, 25 °C	≥ 6000 times @ 80% DOD, 25 °C
Methods Of Communication	RS232/RS485/CAN	RS232/RS485/CAN
Charging Temperature	0~60℃	0~60℃
Discharge Temperature	-10~65℃	-10~65℃
How It Is Displayed	LCD display	LCD display
IP Protection	IP 21	IP 21
Conventional
Product Dimensions (L×W×Hmm)	440×186×560	450×206×670
Net Weight (Kg)	44	87
Packing Dimensions (L×W×Hmm)	512×255×632	525×410×755
Gross Weight (Kg)	50	104

02 FIELDS OF APPLICATION

Wall-Mounted Energy Storage LiFePO4 Battery, and the main use areas are as follows:

Standby power Home energy storage Machine shop Solar storage
